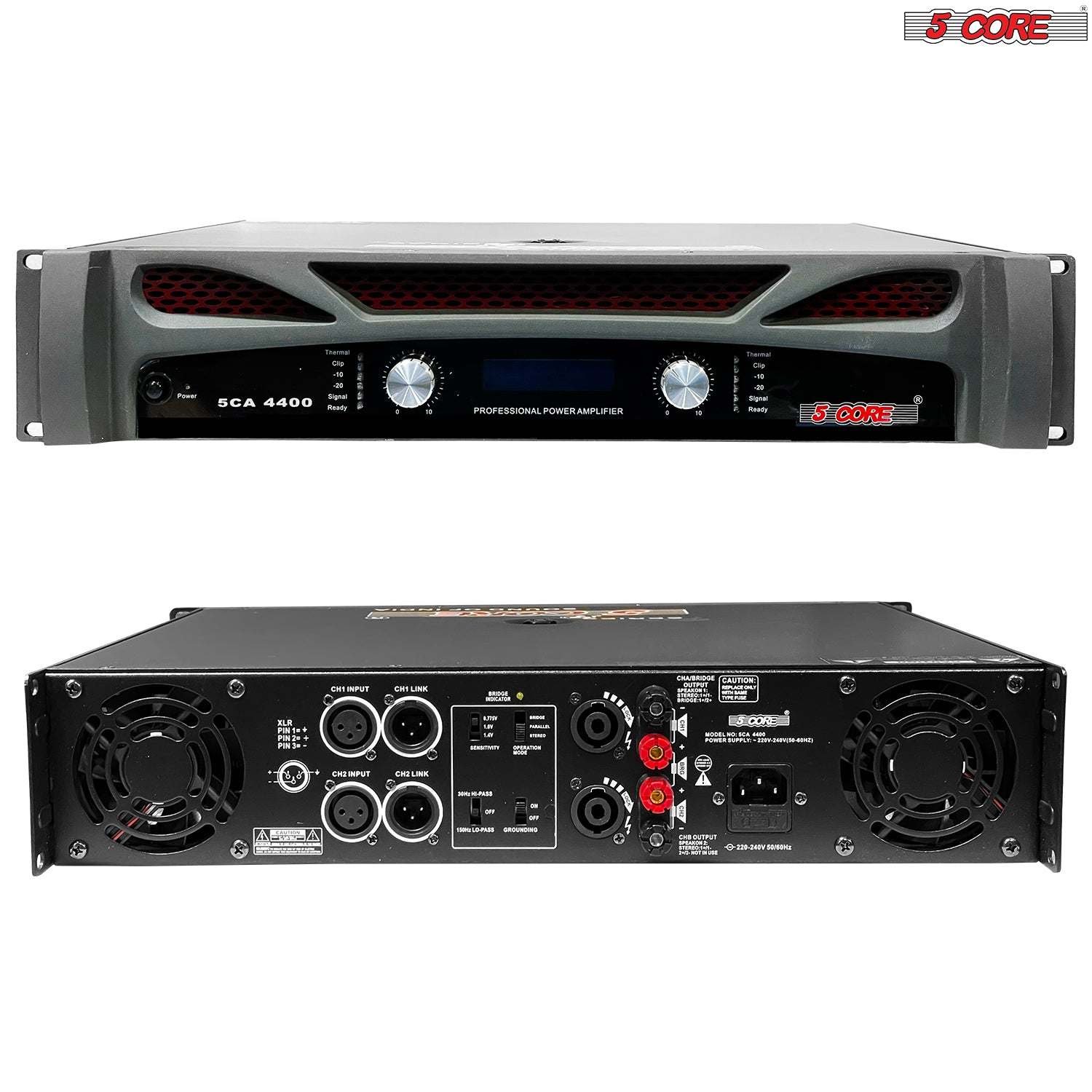

Amplifier Audio Amp Stereo System USB Input Mic Aux Mini Amplifier For Speakers Surround Sound 5 Core 5CA 4400
1.About this item
Details:
•�� POWERFUL AUDIO - The 2 Channel Professional Powerful Amplifier- 2U; 4Ω; perfect for Live Stage; DJ; studio; Auditorium; and Worship. With 2400 Watts of peak Power; it is usually sufficient for any outdoor audio requirement. Bass; Treble; Balance; and Master Volume Controller in the Amplifier. 2 Channel Professional/DJ Rack Mount Amplifier; volume in dB per channel and operating temperature; 2U rack space; and Built-in limiter protects your speakers from distortion and clipping.
•�� EQ CONTROLS - The improved professional compact bookshelf sound amplifier features crisp; responsive buttons for mode controls. Rotary knob controls for mic echo/volume balance; bass; treble; master volume; input source; and the unique folder/track.
•�� LCD DISPLAY METER - The compact and rack mount amplifier has a built-in digital LCD display which gives the amplifier a very elegant look. Thermal Protection for overheat overload; short circuit; dc; soft start.
•�� HIGH PERFORMANCE – 3 Modes of operation for ease of installation according to the need of events. Bridged mode allows you to combine both channel’s power into one channel for use with a subwoofer; Stereo mode is perfect for (2) speakers or (4) speakers in left and right configurations.
•�� SUBHARMONIC SYNTH - Enhanced Subharmonic Synth section provides user control over frequency; gain; and filter type for system-specific tuning. New system monitoring provides software visibility of AC line voltage and power supply temperature.

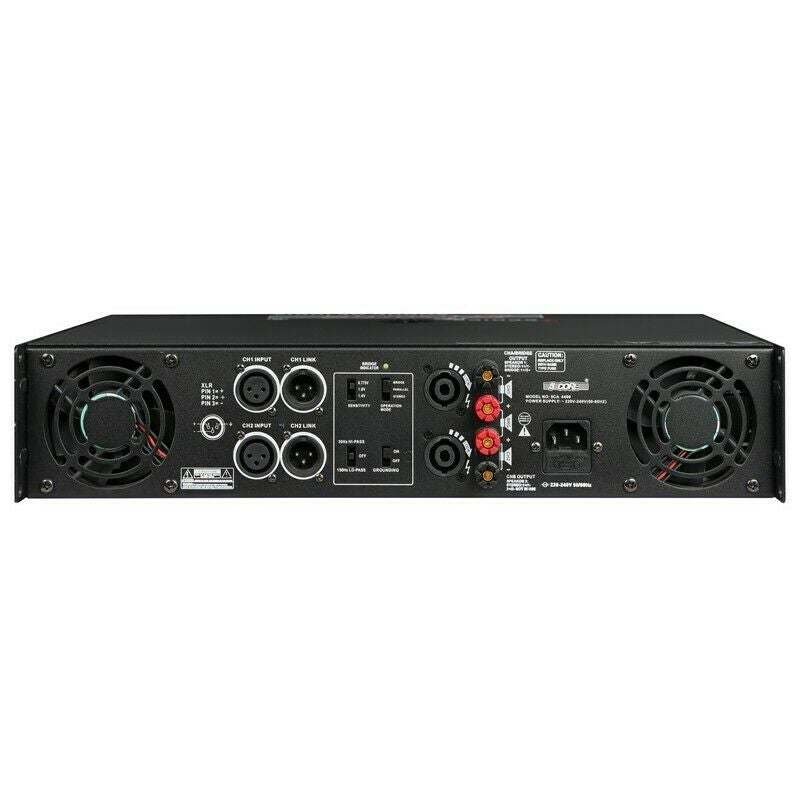

Power Amplifier 5C-CA-4400 · Stereo Mode Respectively connect the left & right signal source with CH1 and CH2. The output terminals respectively connect with a speaker. · Parallel Mode Respectively connect speaker with output terminal of each channel. The output volume of each channel is controlled by the volume knob at the front panel. · Bridge Mode Connect the positive terminal of both channels to speakers. The output volume is controlled by CH1/CH3 volume knob at the front panel. Technical Specifications: 8 ohm stereo power 1200Wx2 4 ohm stereo power 1800Wx2 2 ohm stereo power 2400Wx2 8 ohm bridge power 3600W 4 ohm bridge power 4800W Frequency Response 20Hz-20KHz±0.3dB THD+N <0.05%@8Ω 1KHz S/N Ratio >103dB Slew Ratio 35V/μS Damping Factor >800 Crosstalk >70dB@8Ω 1KHz Input Sensitivity 1.4V Input impedance(balance/unbalance) 10KΩ/20KΩ Voltage gain(sensitivity:8ohm) 38dB Output Circuitry Class H Cooling Air flow from front to rear Protection Soft Start; Dc; Short Circuit; Over Load; Clip Limit; Over Heat; Progressive Volume Product Dimensions (W*H*D) 515*485*133(3U) Packing Dimensions (W*H*D) 665*590*203 G.W(±5KG) 42KG Power cord BS 1363 Standard AC110V/60HZ.±10% AC120V/60HZ.±10% USP: · High performance · Three modes of operation for ease of installation according to the need of event. · Best suitable for live stage/DJ/studio/auditorium/worship. · Thermal protection for overheat overload; short circuit; dc; soft start
